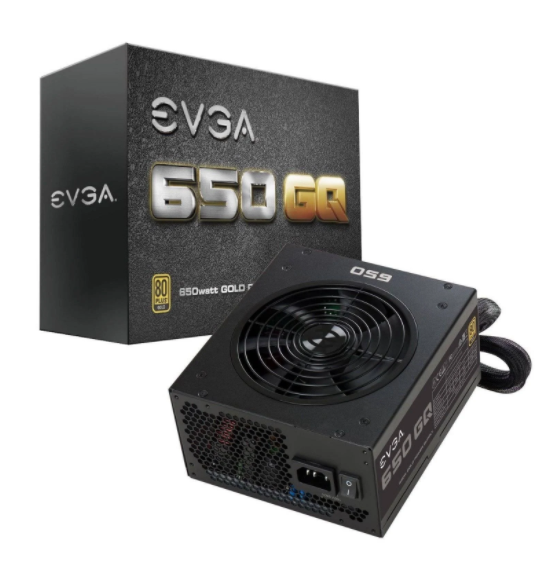

EVGA 650 GQ

Details
Type	ATX12V / EPS12V
Maximum Power	650 W
Fans	1 x 135mm Fluid Dynamic Bearing Fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	9
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	Semi-Modular
Efficiency	90% (115 VAC) / 92% (220 VAC - 240 VAC) or Higher Typical
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50 - 60 Hz
Input Current	10A
Output	+3.3V@ 24A, +5V@24A, +12V@54A, +5VSB@3A, -12V@0.5A
MTBF	100,000 Hours
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Max PSU Length	165 mm
Connectors	1 x 24-Pin ATX 2 x 8-Pin (4+4) EPS (CPU) 4 x 8-Pin (6+2) PCIE 9 x SATA 3 x Four-Pin Peripheral 2 x Floppy

Features
Features	80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC - 240VAC) efficiency or higher under typical loads NVIDIA SLI & AMD Crossfire Ready Modular Design to reduce clutter and improve airflow 100% Japanese Capacitors ensure long-term reliability Active Clamp +DC to DC design for efficient operation EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads Whisper Silent with 135mm Fluid Dynamic Bearing Fan Active Power Factor Correction (PFC)

Dimension & Weight
Dimensions	85.09 mm x 150.11 mm x 165.10 mm
Weight	2.72 kg
